Din 5299D Snap Hook With Screw
STAINLESS STEEL AISI316
STAINLESS STEEL AISI304
STEEL ELECTRIC GALVANIZED

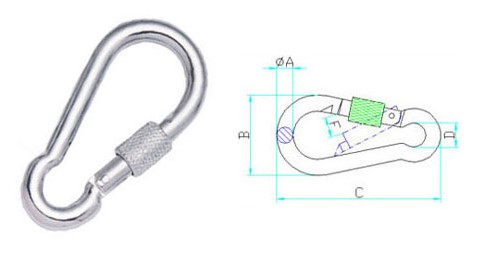

φA | B | C | D | F | W.L.L | |
mm | mm | mm | mm | mm | mm | LBS |
4×40 | 4 | 20 | 40 | 7 | 7 | 80 |
5×50 | 5 | 25 | 50 | 8 | 7 | 100 |
6×60 | 6 | 30 | 60 | 9 | 8 | 140 |
7×70 | 7 | 35 | 70 | 10 | 8 | 200 |
8×80 | 8 | 40 | 80 | 12 | 9 | 250 |
9×90 | 9 | 45 | 90 | 12 | 10 | 280 |
10×100 | 10 | 50 | 100 | 15 | 11 | 400 |
11×120 | 11 | 57 | 120 | 18 | 16 | 500 |
12×140 | 12 | 67 | 140 | 20 | 19 | 600 |
13×160 | 13 | 74 | 160 | 22 | 25 | 700 |
14×180 | 14 | 86 | 180 | 22 | 35 | 900 |
Din 5299D Snap Hook With Screw
STAINLESS STEEL AISI316
STAINLESS STEEL AISI304
STEEL ELECTRIC GALVANIZED
φA | B | C | D | F | W.L.L | |
mm | mm | mm | mm | mm | mm | LBS |
4×40 | 4 | 20 | 40 | 7 | 7 | 80 |
5×50 | 5 | 25 | 50 | 8 | 7 | 100 |
6×60 | 6 | 30 | 60 | 9 | 8 | 140 |
7×70 | 7 | 35 | 70 | 10 | 8 | 200 |
8×80 | 8 | 40 | 80 | 12 | 9 | 250 |
9×90 | 9 | 45 | 90 | 12 | 10 | 280 |
10×100 | 10 | 50 | 100 | 15 | 11 | 400 |
11×120 | 11 | 57 | 120 | 18 | 16 | 500 |
12×140 | 12 | 67 | 140 | 20 | 19 | 600 |
13×160 | 13 | 74 | 160 | 22 | 25 | 700 |
14×180 | 14 | 86 | 180 | 22 | 35 | 900 |
